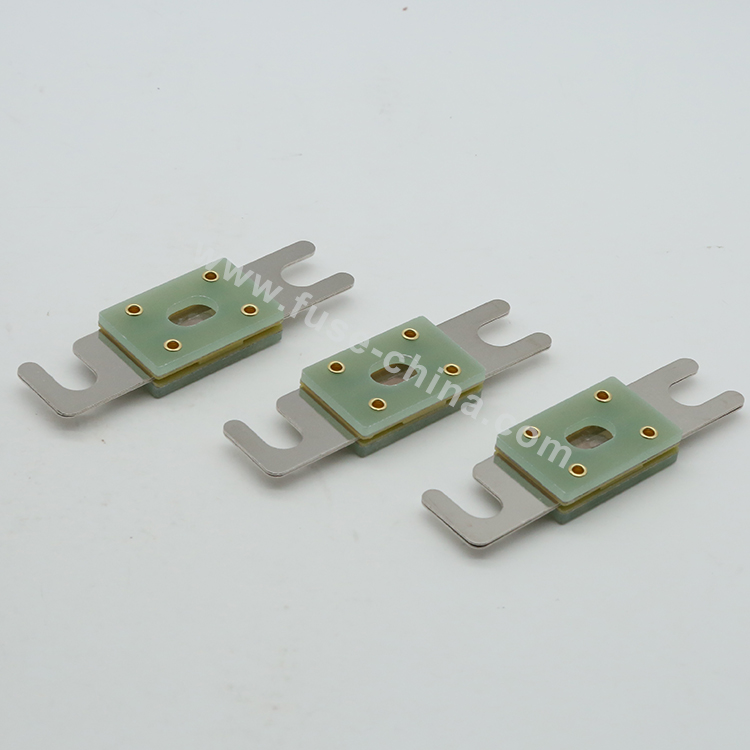

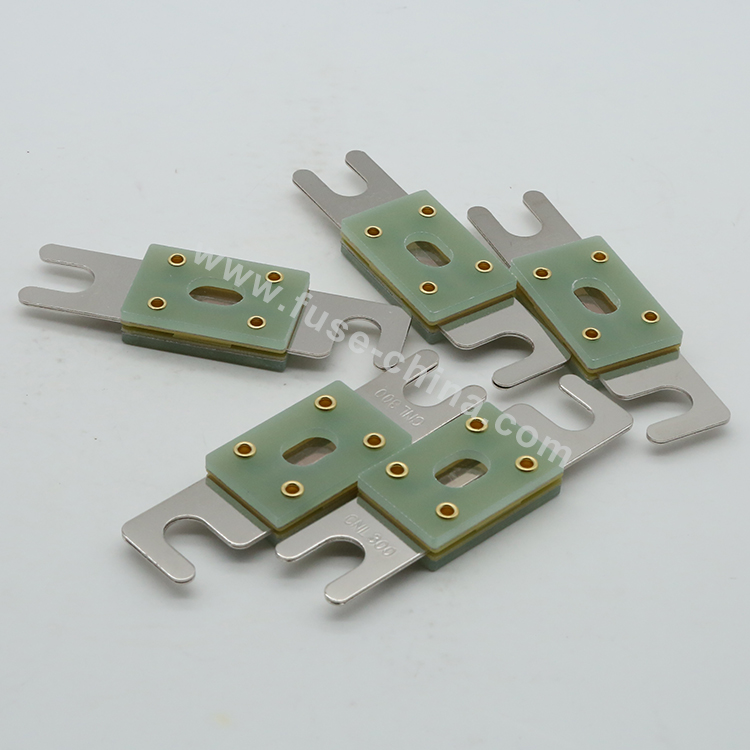

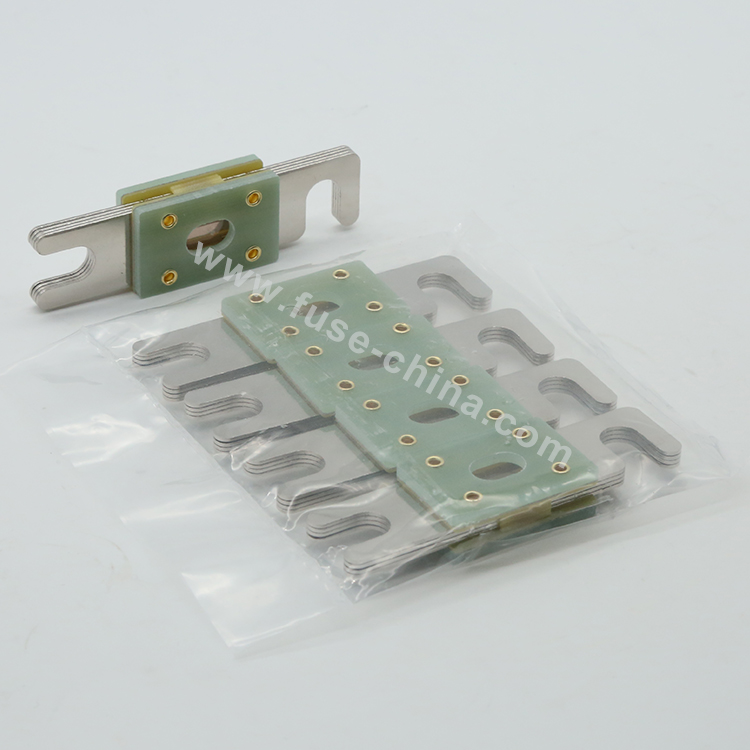

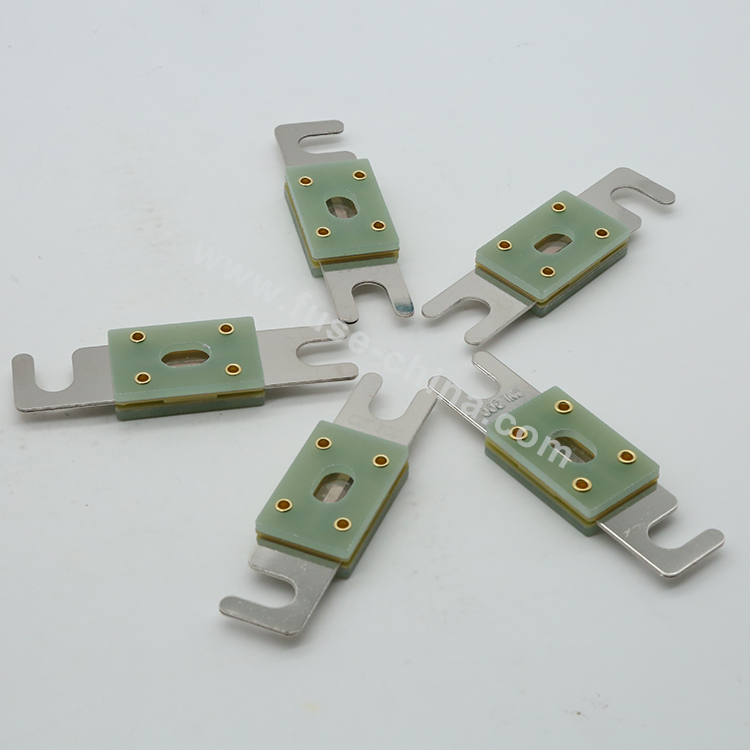

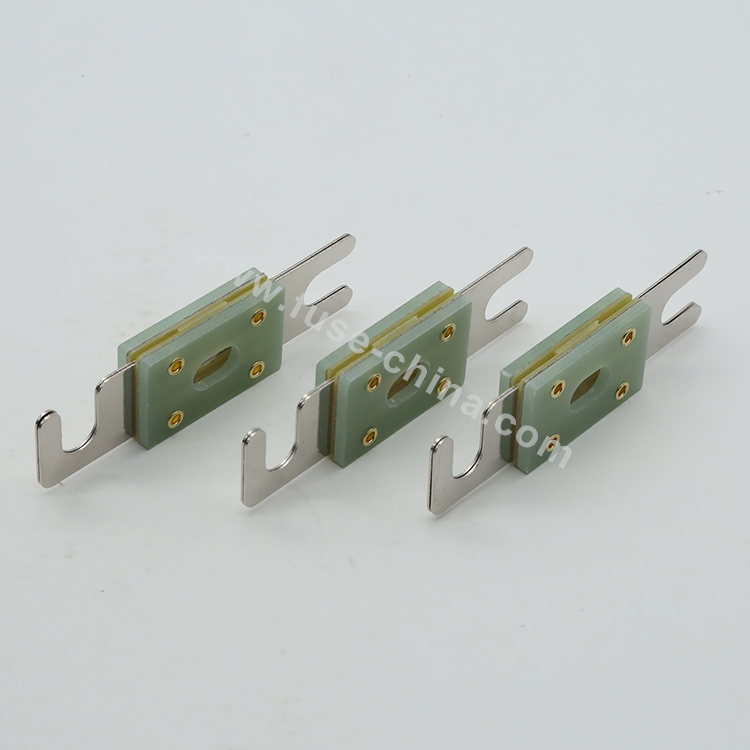

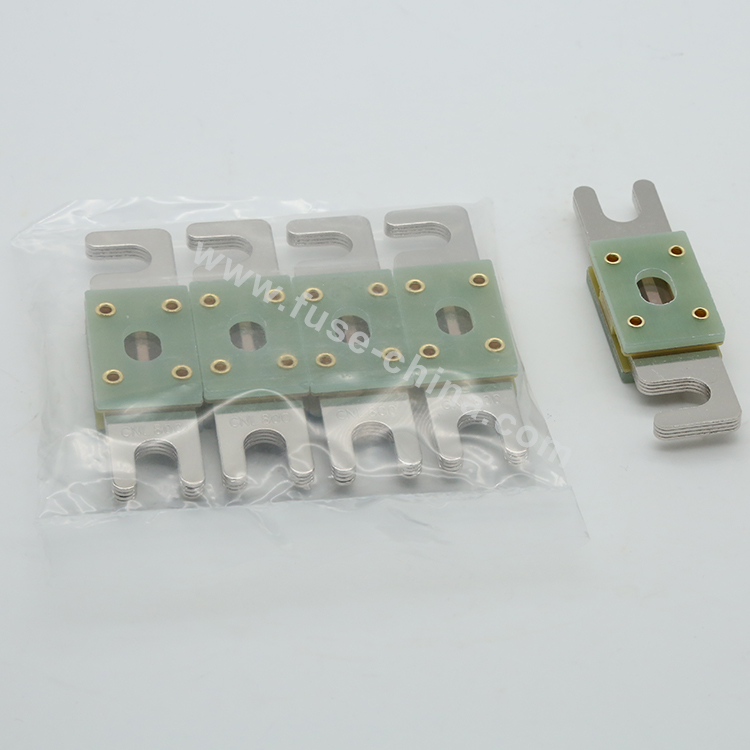

32V 48V DC Fast Acting 35A to 800A Equivalent Littelfuse Power CNN CNL Series Lift Truck Fuse
Non-time-delay low voltage limiter fuse for use in isolating faults in battery operated systems,Lift trucks, scissor lifts, pallet movers, and other low voltage battery operated equipment used to move hazardous materials.
Specification
Product Name: CNL Fuse
Rated Current: 35A to 800A
Rated Voltage: 80VDC
Insulating Case: Bonded Fibreglass
Fusible: Cooper Alloy with Ni Plated
Rivet: Brass Alloy
Transparent Sheet: MICA
Features
Element visible through clear window to easily identify open status
2,700 A interrupting rating @80VDC
6,000 A interrupting rating @32VDC
Compact size saves space
RoHS compliant and lead free
Volts 80Vdc or less
Amps 35-800A
Stud centers: D= 62mm
Functional Characteristics
| TESTING CURRENT | | BLOW TIME LIMIT |
| 160% | I<300A | 5Seconds Min |
| | I>=300A | 20seconds Min |
| 200% | I<300A | 1sec-30sec |
| | I>=300A | 2sec-120sec |
Catalogue Numbers and Resistance
| P/N | RATING | Rm(20°C)mΩ |
| CNL-35 | 35A | 3.43∽4.19 |
| CNL-40 | 40A | 2.88∽3.53 |
| CNL-50 | 50A | 2.21∽2.71 |
| CNL-60 | 60A | 1.80∽2.20 |
| CNL-80 | 80A | 1.31∽1.60 |
| CNL-100 | 100A | 0.77∽0.94 |
| CNL-125 | 125A | 0.61∽0.74 |
| CNL-130 | 130A | 0.51∽0.63 |
| CNL-150 | 150A | 0.45∽0.55 |
| CNL-175 | 175A | 0.39∽0.47 |
| CNL-200 | 200A | 0.33∽0.41 |
| CNL-225 | 225A | 0.29∽0.35 |
| CNL-250 | 250A | 0.25∽0.30 |
| CNL-275 | 275A | 0.22∽0.27 |
| CNL-300 | 300A | 0.20∽0.25 |
| CNL-325 | 325A | 0.18∽0.22 |
| CNL-350 | 350A | 0.15∽0.18 |
| CNL-400 | 400A | 0.12∽0.15 |
| CNL-500 | 500A | 0.11∽0.13 |
| CNL-600 | 600A | 0.08∽0.11 |
| CNL-675 | 675A | 0.06∽0.075 |
| CNL-700 | 700A | 0.058-0.072 |
| CNL-750 | 750A | 0.056∽0.07 |
| CNL-800 | 800A | 0.053∽0.067 |
