Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board

Name: Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board
Brand: Tianrui
Price: 1 USD

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board Manufactures

Brand Name : Tianrui

Model Number : 510F 510G 510H 510I 510K

Certification : ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : 5x20mm PCB Board Fuse Holder

Current Rating : 6.3A

Voltage Rating : 250V

Material : Nylon+Glass Fiber

Contact Fuse Clip : Tin Plated

Operating Power : 1.6W

Contact Resistance : <5mΩ

Insulation Resistance : > 100MΩ

Dielectric Strength : > 3000Vac/60sec.

Package : Polybag

Contact Now

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse Pcb Board

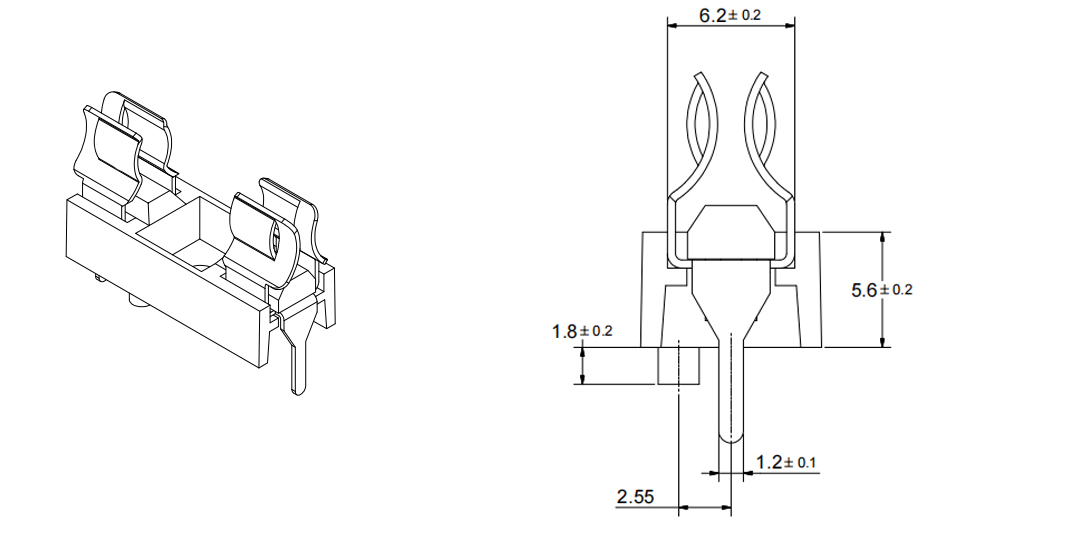

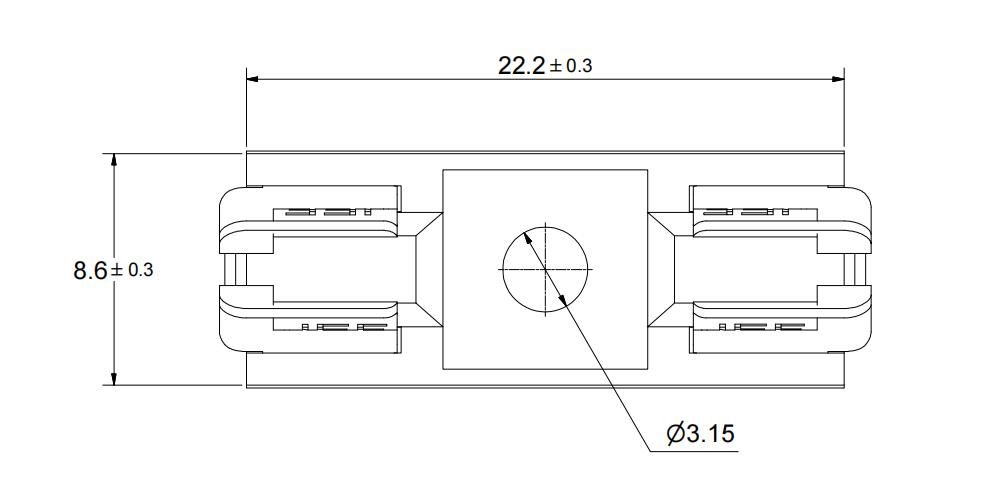

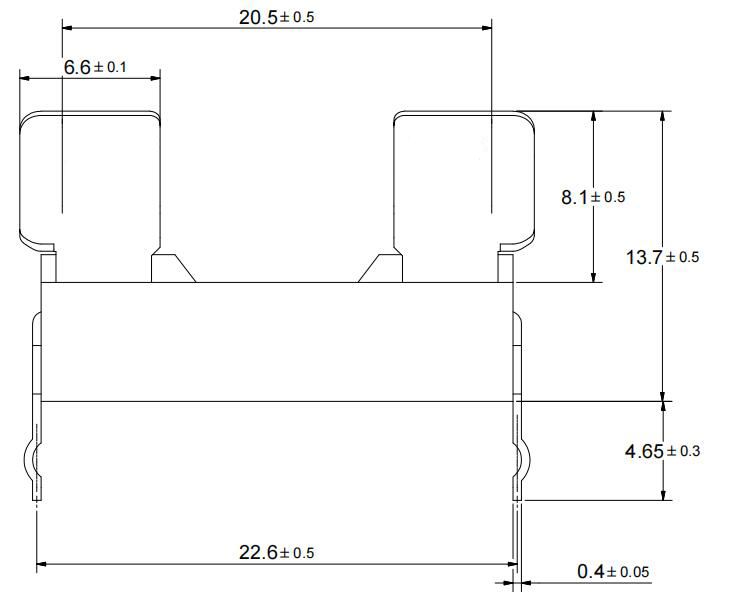

510F

Electrical Characteristics

Nominal CurrentVoltage	6.3A 250V
Operating Power	1.6W
Contact Resistance	<5mΩ
Insulation Resistance	> 100MΩ
Dielectric Strength	> 3000Vac/60sec.
Insulation Body	Nylon+Glass FiberUL 94 V1
Contact Fuse Clip	CuZn37 Tin Plated

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board

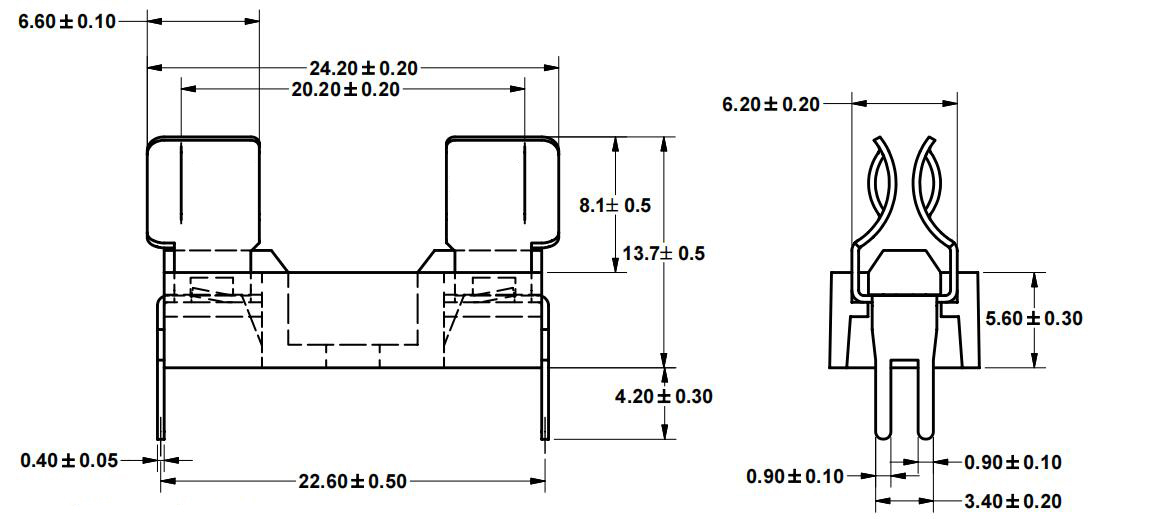

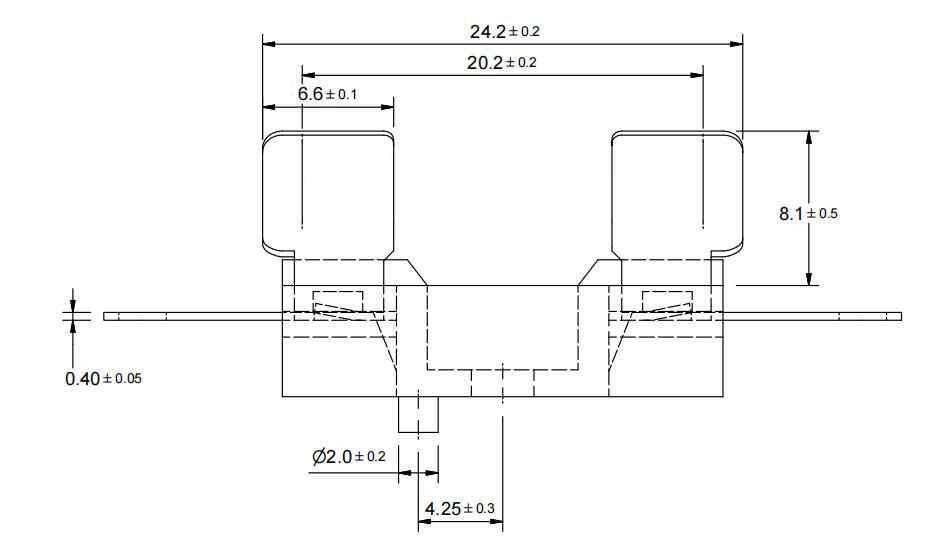

510G

Electrical Characteristics

Nominal CurrentVoltage	6.3A 250V
Operating Power	1.6W
Contact Resistance	<5mΩ
Insulation Resistance	> 100MΩ
Dielectric Strength	> 3000Vac/60sec.
Insulation Body	Nylon+Glass FiberUL 94 V0
Contact Fuse Clip	CBrass, Tin Plated

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board

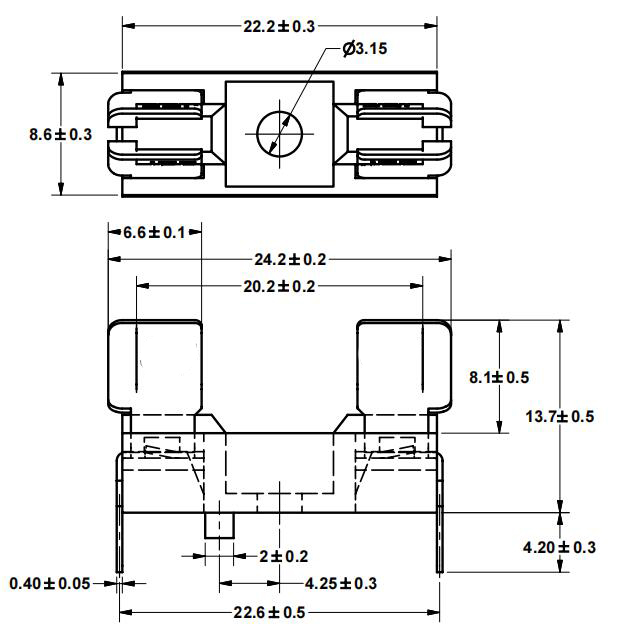

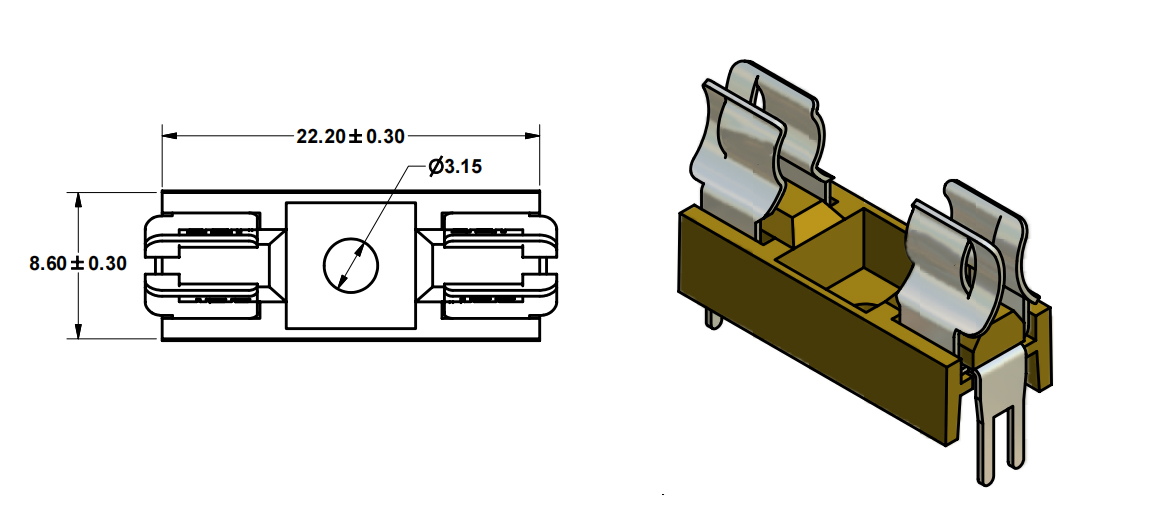

510H

Electrical Characteristics

Nominal CurrentVoltage	6.3A 250V
Operating Power	1.6W
Contact Resistance	<5mΩ
Insulation Resistance	> 100MΩ
Dielectric Strength	> 3000Vac/60sec.
Insulation Body	Nylon+Glass FiberUL 94 V0
Contact Fuse Clip	CBrass, Tin Plated

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board

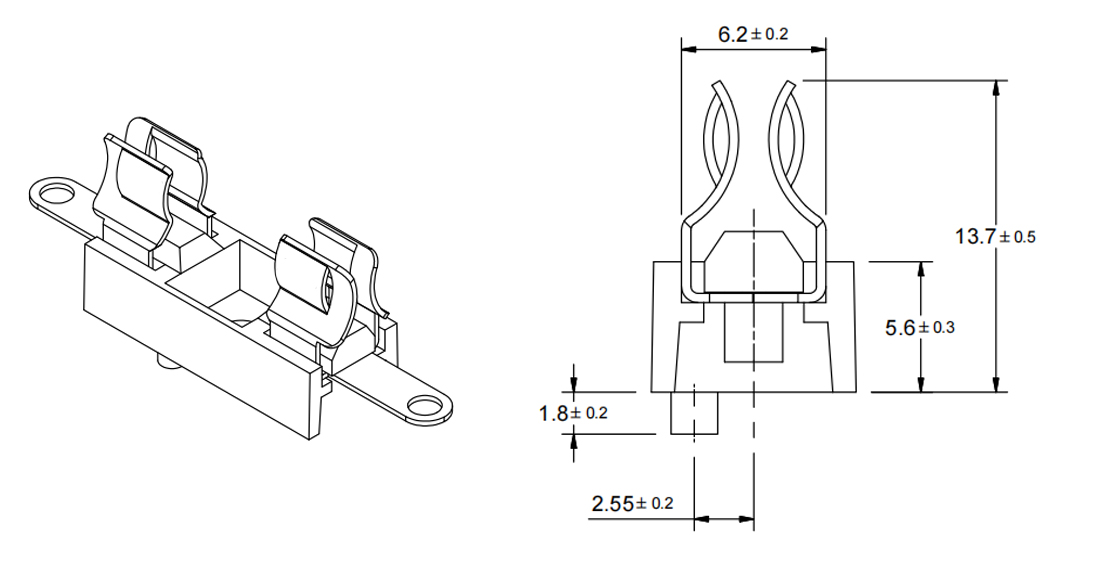

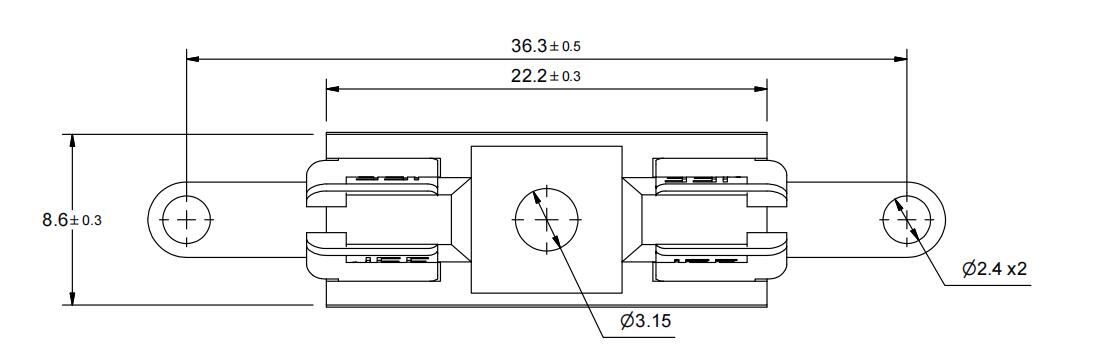

510I

Electrical Characteristics

Nominal CurrentVoltage	6.3A 250V
Operating Power	1.6W
Contact Resistance	<5mΩ
Insulation Resistance	> 100MΩ
Dielectric Strength	> 3000Vac/60sec.
Insulation Body	Nylon+Glass FiberUL 94 V1
Contact Fuse Clip	CuZn37 Tin Plated

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board

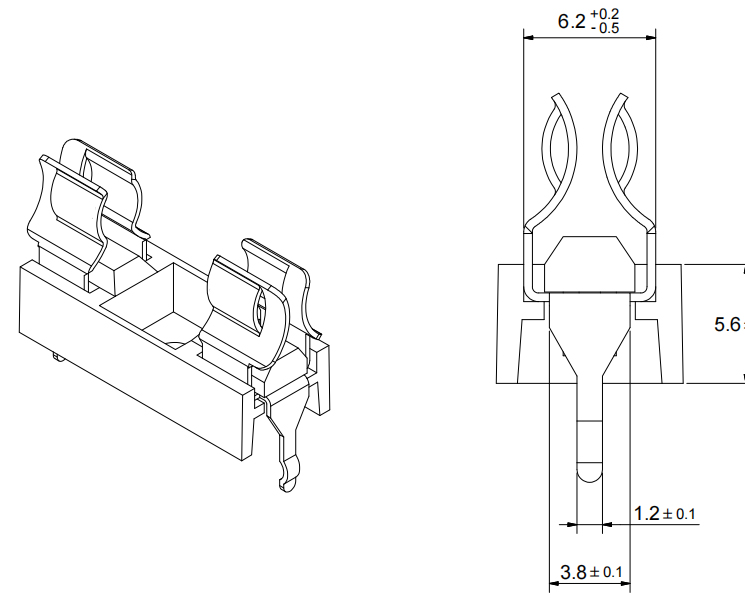

510K

Electrical Characteristics

Nominal CurrentVoltage	6.3A 250V
Operating Power	1.6W
Contact Resistance	<5mΩ
Insulation Resistance	> 100MΩ
Dielectric Strength	> 3000Vac/60sec.
Insulation Body	Nylon+Glass FiberUL 94 V0
Contact Fuse Clip	CBrass, Tin Plated

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board
