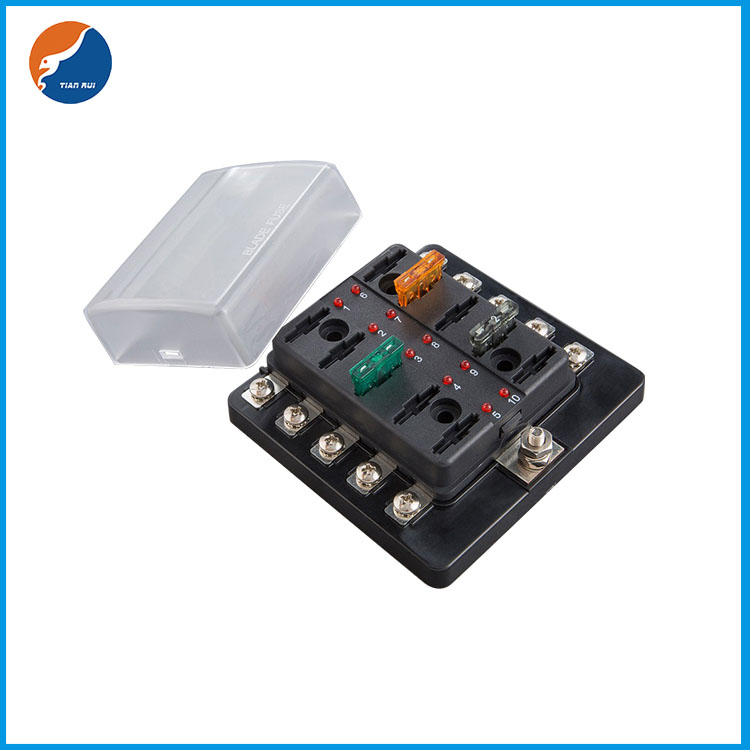

Indicator Red LED Light 10 Ways Circuit Poles Auto Blade Fuse Box Holder Block
Specifications of Indicator Red LED Light 10 Ways Circuit Poles Auto Blade Fuse Box Holder Block
Product name: 10 Ways Blade Fuse Holder with LED indicator
Material: PC cover, transparent; PBT body, black; Terminal: copper tin plated.
Weight: 10 ways-125g
Voltage: 32VDC (common use within 32V)
Current: The maximum can withstand 100A, it is recommended that each circuit does not exceed 30A.
Applicable fuse: standard blade fuse (1A-30A).
Applicable terminals: Y-type terminal on the input end, which can be used with #4-6AWG wire; 250 in-line terminals for the output end, which can be used on #12-16AWG wire.
LED indicator: Unique design with LED indicator, the indicator does not light up under normal conditions when the circuit is connected and the fuse is inserted. If the fuse is abnormal, the indicator light is on, and the indicator light of the fuse is not inserted. Continue to work after replacing the fuse, the fuse box will not be affected.
| Max Voltage | 32 VDC |
| Max Current Rating | 30A per Circuit - 100A Max Input |
| Fuse Type | Regular Auto Blade Fuse. |
| Base | PBT (UL flame: 94V-0), Black |
| Cover | PC (UL flame: 94V-2), Transparent |
| Push Button | POM (White) |
| Terminals | Copper, Tin plated |
| Indicating | LED - Red |
| Temperature Rating | -20° C~ +85° C |
| Mechanical Dimensions | Inches [mm] |

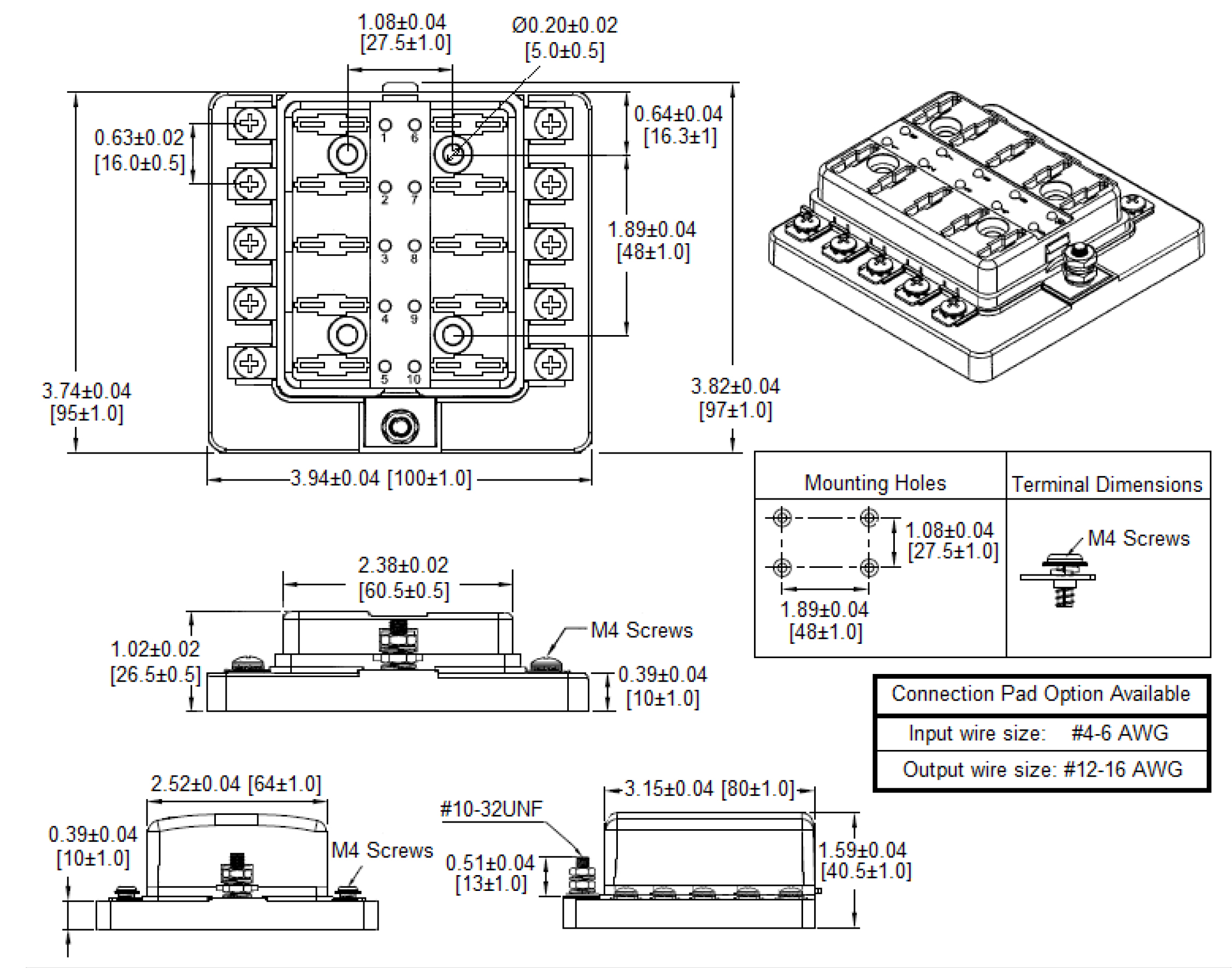

Drawing of Indicator Red LED Light 10 Ways Circuit Poles Auto Blade Fuse Box Holder Block
Application of Indicator Red LED Light 10 Ways Circuit Poles Auto Blade Fuse Box Holder Block

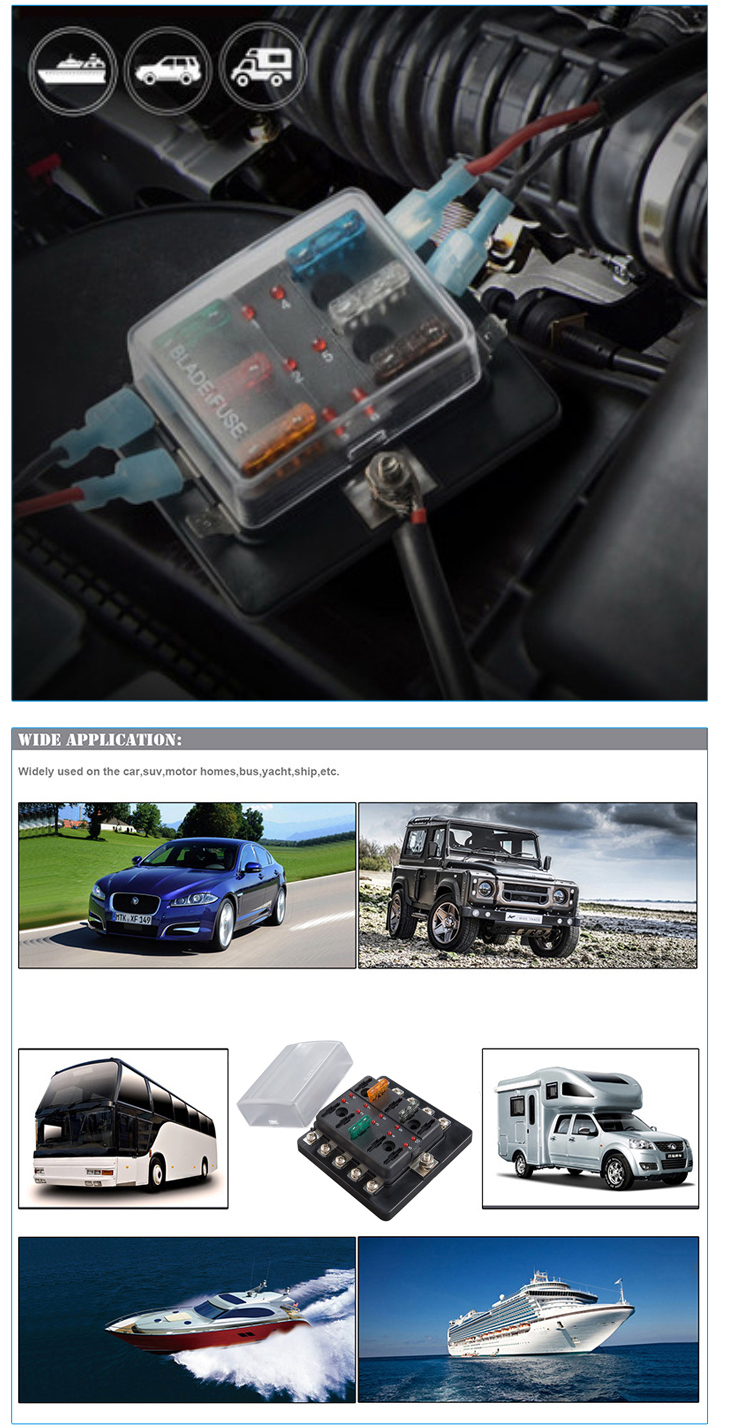

Suitable for electric vehicles, auto audio, auto assembly insurance, sightseeing/fire fighting/new energy vehicles, forklifts, air conditioners, buses and high-power meters, instruments, generators, etc.
More About Indicator Red LED Light 10 Ways Circuit Poles Auto Blade Fuse Box Holder Block
Current: Each circuit should not exceed 30A, and the total current of a fuse holder cannot exceed 100A (because it is a fuse holder with one input and multiple output).
Lighted/unlighted fuse holder
The difference in appearance: if you see a red dot in the middle of the socket, it means that it has an LED light function, and it does not have a light if there is no red dot.
Features of fuse holder with reminder light (LED light): It will light up under two conditions
1: When all the fuse holders are connected to power, (the incoming and outgoing lines are all connected to power), when no fuse is installed, its corresponding light will be on.
2: When your seat is fully connected to the power (the incoming and outgoing positions are all connected to the power) there is a fuse inserted, but the fuse is burned, its corresponding position will light up.
