75900 75904-12 Double Pole Series 36V High Amp DPST Master Battery Disconnect Switch
The 75900 Double Pole Series 36 V High-Amp DPST Master Battery Disconnect Switches are designed to handle two loads. This allows you to control two systems, such as the battery and the alternator or generator field circuit, or to disconnect the positive and negative of the same circuit. Depending on the model, these master battery disconnect switches may be capable of handling two high-current loads or may be designed with one high- current circuit and one auxiliary circuit for applications like secondary reporting of the switch’s status.
All 75900 Double Pole series master disconnect switches feature a heavy-duty, plated-steel housing, which makes them ideal for use in
commercial vehicles. Plus, thanks to O-ring, epoxy, and gasket seals on various models, it is easy to find a disconnect switch that stands up to the conditions of your specific application.
Specification
| Product Name | Master Battery Disconnect Switch |
| Continuous Rating | 125A large studs, 20A small studs |
| lntermittent Rating | 1000A×15 sec. (Large studs) |
| Rated Voltage | 6-36V |
| Terminal Size | Two 3/8''-24, two 10-32 |
| Terminal Material | Brass |
| Terminal Hardware | Brass |
| Actuator | Chrome Lever |
| Housing | Plated Steel Housing |
| Circuitry | DPST |
| Mounting Method | Through-Hole |
| Normal Position | Open |
Features
• Double-pole disconnect switches handle two loads
• Models are available with various terminals and current ratings
• 3/4”-16 mounting stem
• Heavy-duty, plated-steel housing
• Models are available with lever or key actuators or with a shaft only
• Compatible with 24505 series lockout lever kits and 80625 series faceplates
Application of 300A 36V SPST 75907 75908 Power Cut Isolator Kill Master Battery Disconnect Switch
Alternator or Generator Systems
Contact Details:
Andy Wu
Email: andy@tianrui-fuse.com.cn
MP/Whatsapp: +86 13532772961
Wechat: HFeng0805
Skype: andywutechrich
QQ: 969828363
|
|

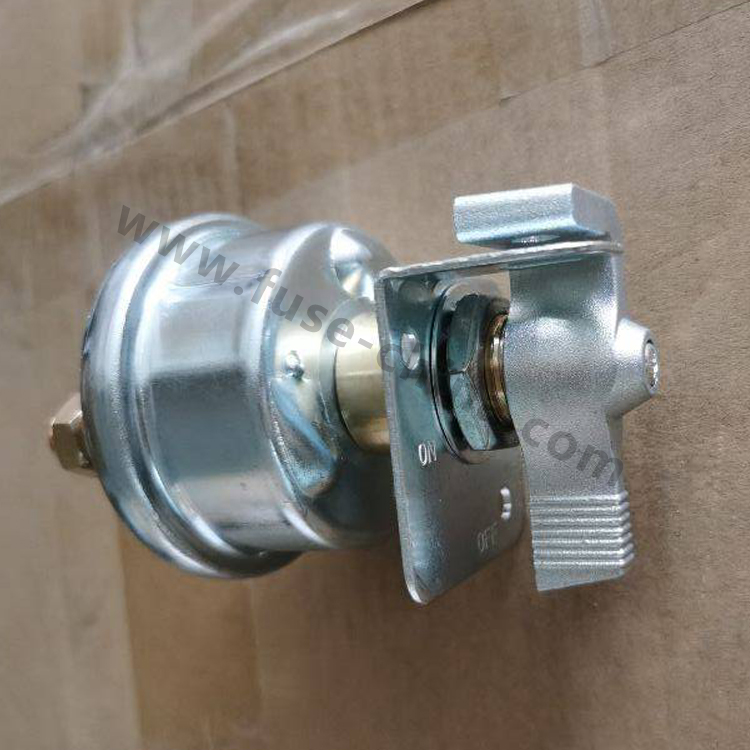

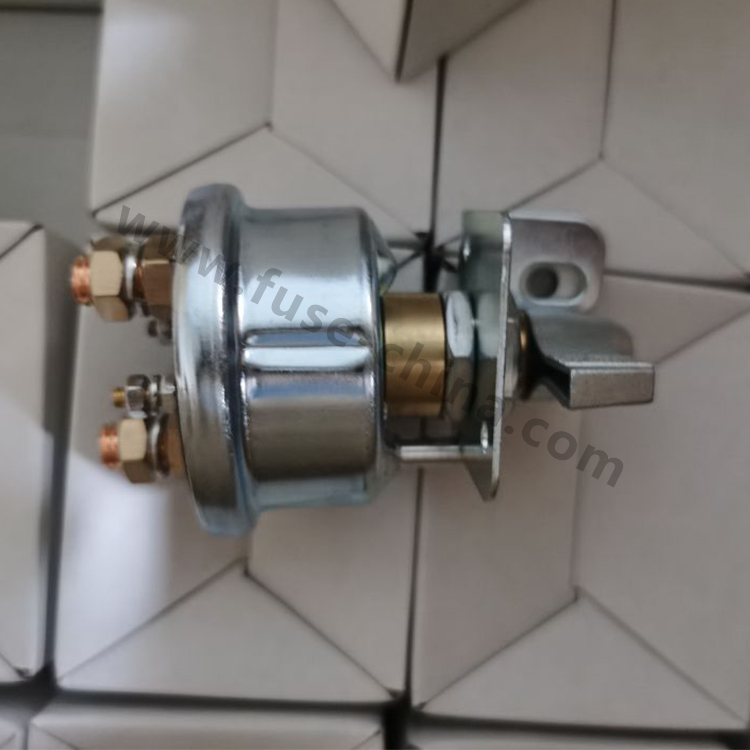

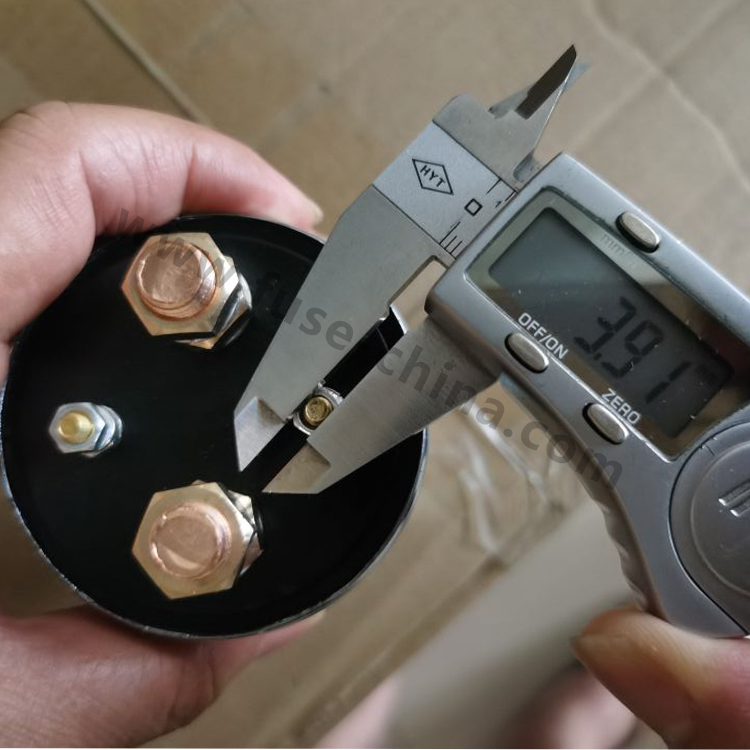

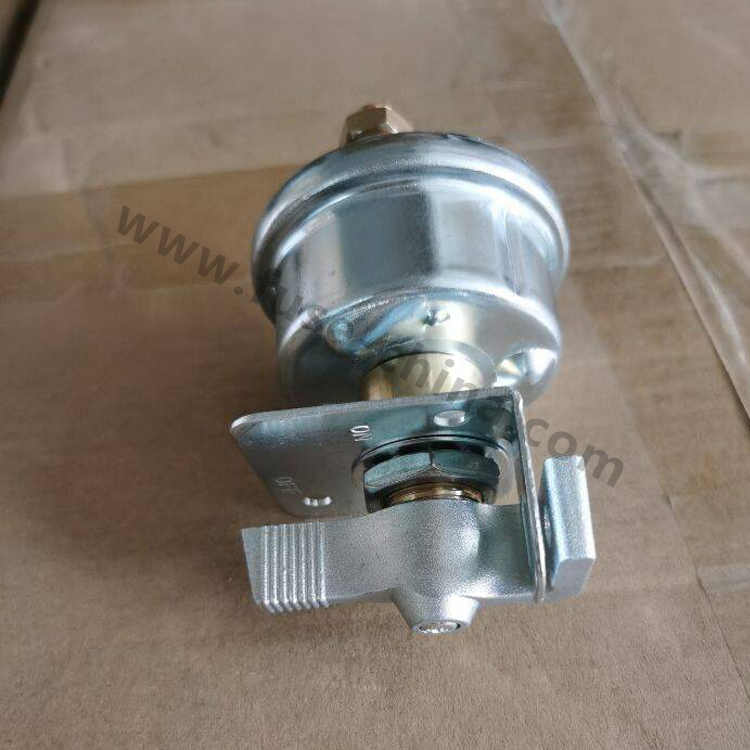

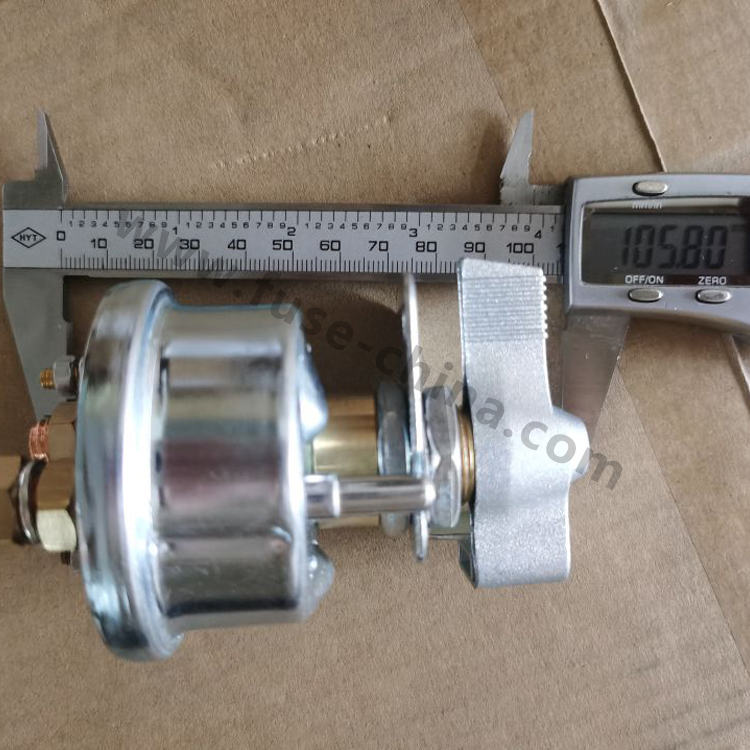

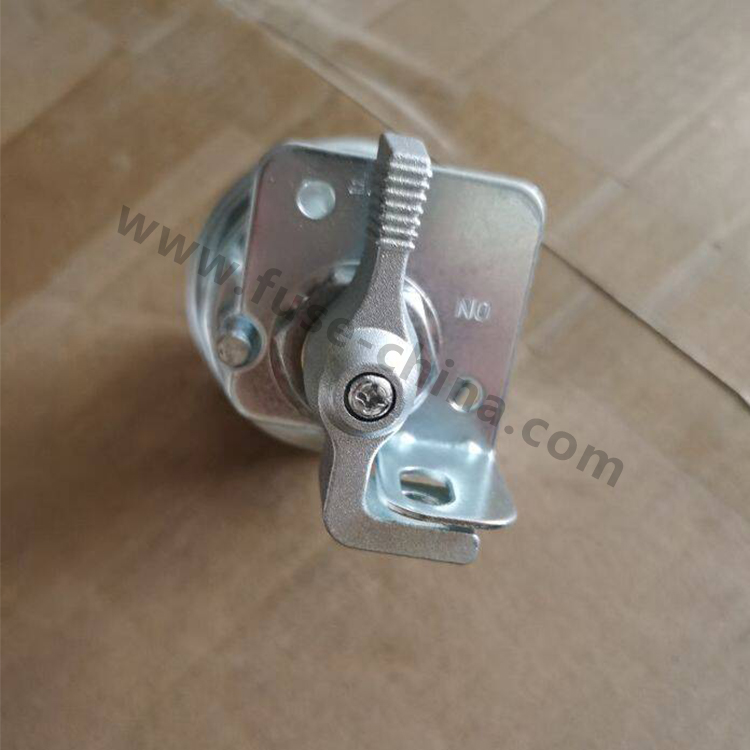

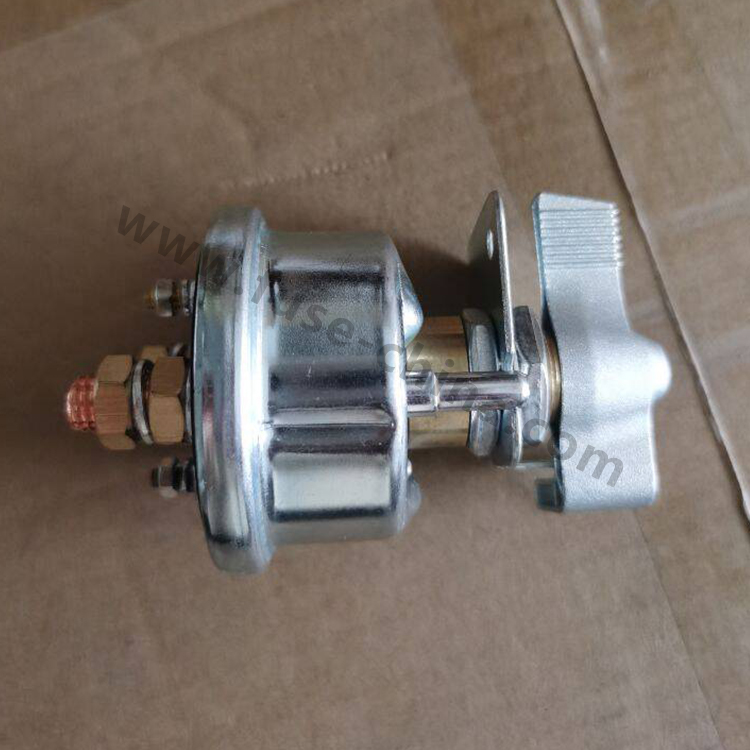

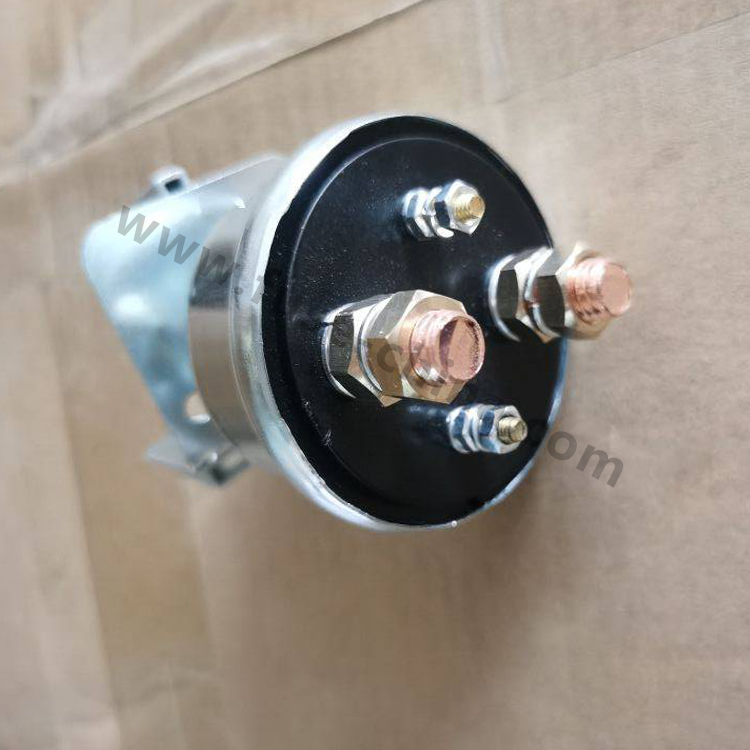

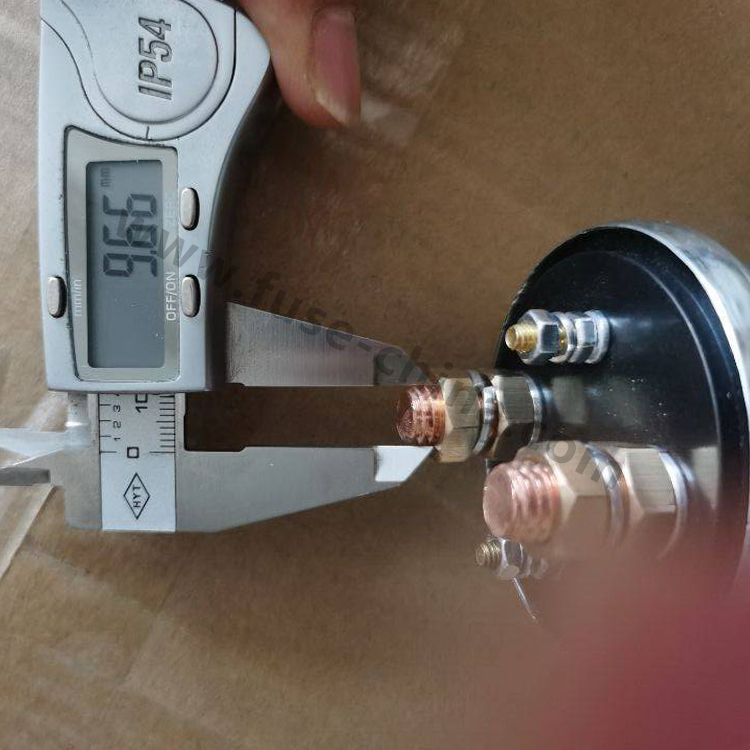

75900 75904-12 Double Pole Series 36V High Amp DPST Master Battery Disconnect Switch Images
|
