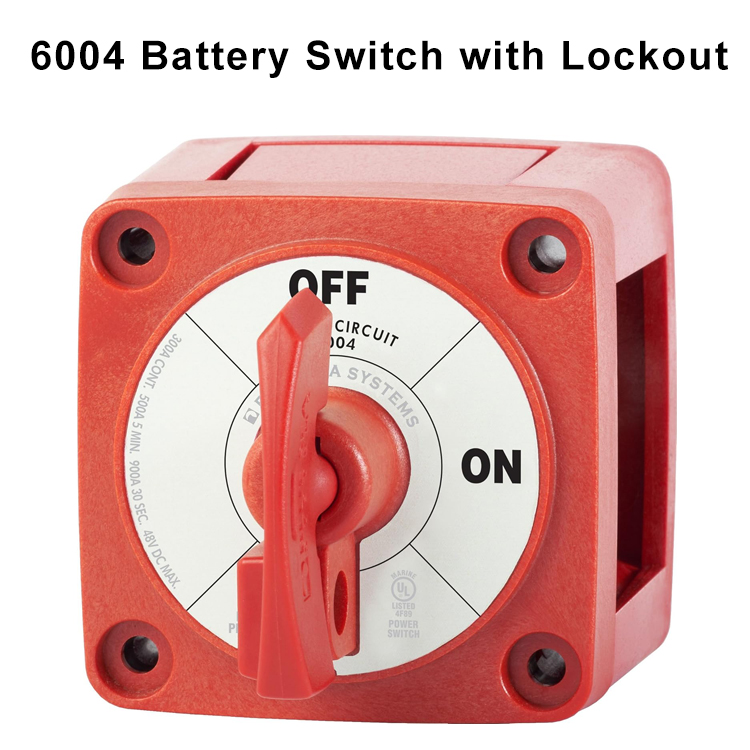

Boat Sea Sytems 6004 M Series ON Off Locking Main Power Switch Battery Switch

Name: Boat Sea Sytems 6004 M Series ON Off Locking Main Power Switch Battery Switch
Brand: TIANRUI
Price: 1 USD

Boat Sea Sytems 6004 M Series ON Off Locking Main Power Switch Battery Switch Manufactures

Brand Name : TIANRUI

Model Number : QB-0058/6004

Certification : ROHS

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Visa, Mastercard

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1PCS/Small Box

Product Name : Boat Marine RV Battery Switch

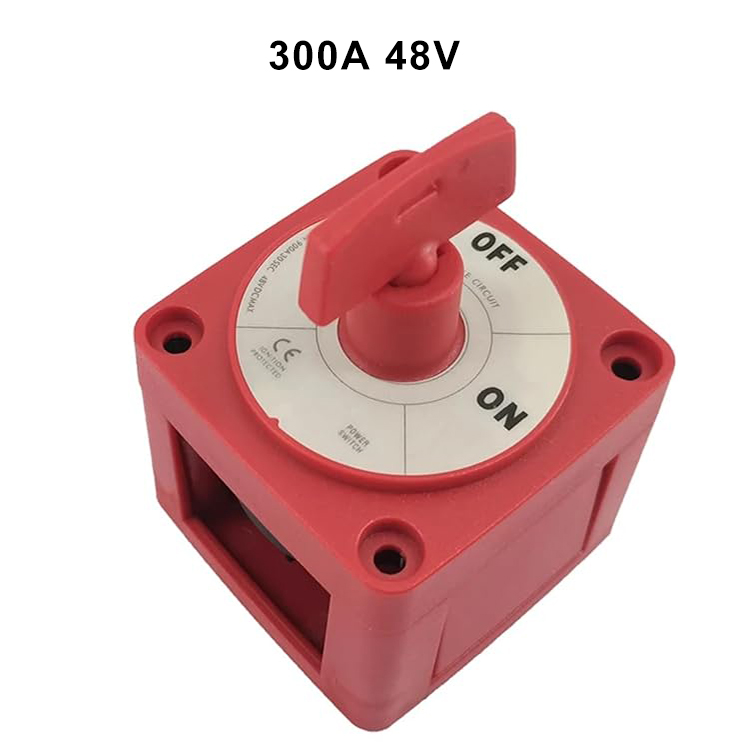

Continuous Rating : 300A

Intermittent Rating : 500A

Starting Rating 30 sec : 900A

Maximum Voltage : 48VDC

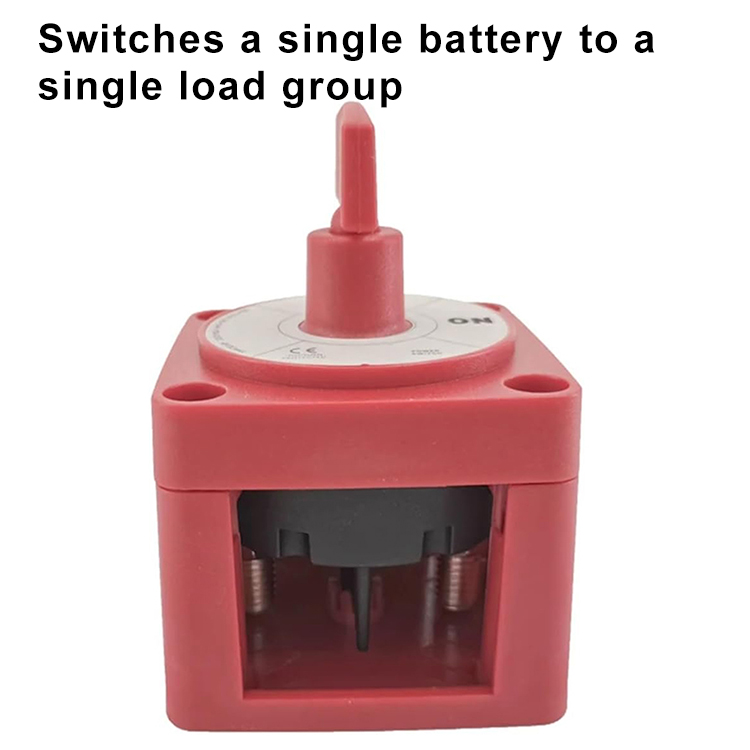

Switch Type : Single Circuit ON-OFF

Stud Size : 3/8"

Stud Material : Tinned Copper

Stud Torque : 120 in-lb (13.56 Nm)

Switching Rating : 25A

Color : Red

Weight : 0.65lb (0.29 kg)

Contact Now

Boat Sea Sytems 6004 M Series ON Off Locking Main Power Switch Battery Switch

Specification

Product Name	Boat Marine RV Battery Switch
Color	Red
Switch Type	Single Circuit ON-OFF
Continuous Rating	300A
Intermittent Rating	500A
Starting Rating 30 sec	900A
Maximum Voltage	48VDC
Stud Size	3/8"
Stud Material	Tinned Copper
Stud Torque	120 in-lb (13.56 Nm)
Switching Rating	25A
Terminal Stud Size	3/8" - 16 (M10)
Weight	0.65lb (0.29 kg)

Features

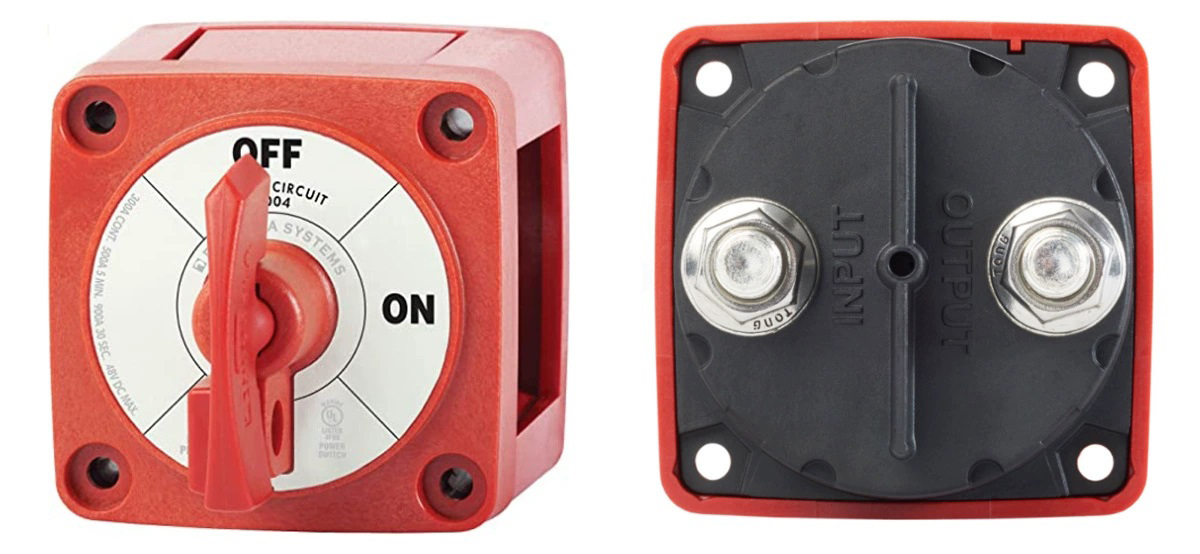

•Tin-plated copper studs for maximum conductivity and corrosion resistance

•Studs accept 3/8" (M10) ring terminals

•7/8" (22 mm) stud length accepts multiple cable terminals

•One-piece terminal stud design never loosens over time

•One-piece stainless flange nuts ensure safe and secure connections

•Isolating cover protects rear contacts

•Breakout tabs allow wire access in any direction

Function

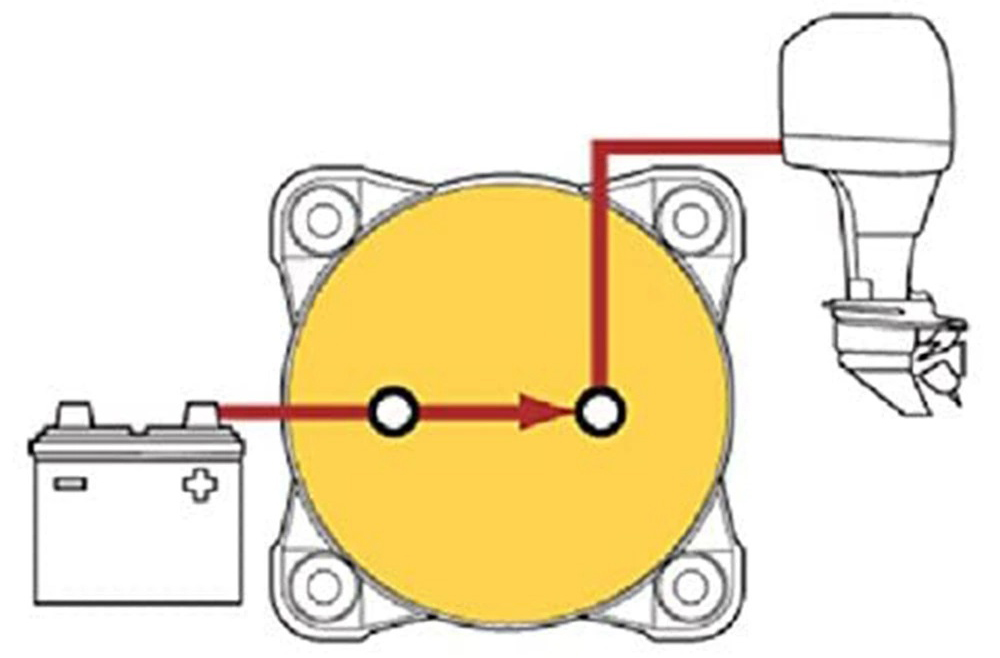

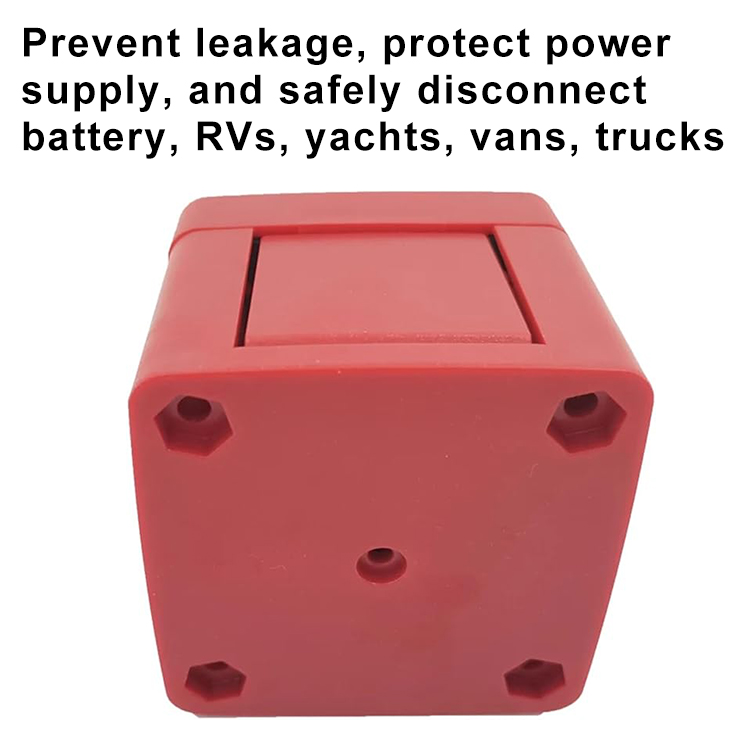

Prevent leakage, protect the power supply, disconnect the battery safely.

Application

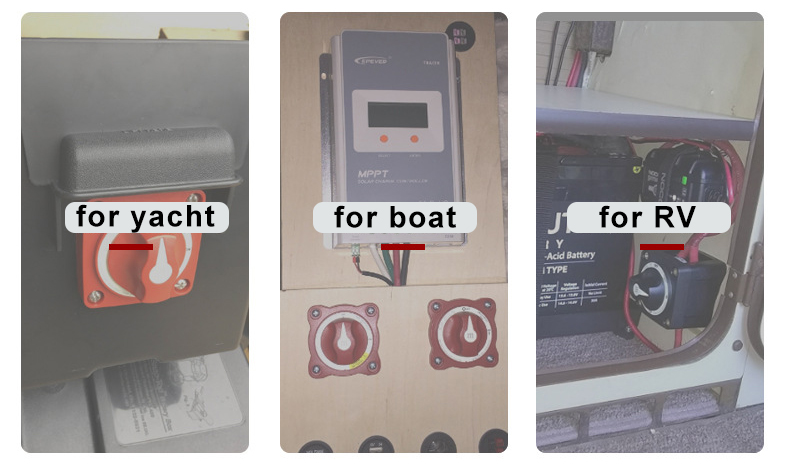

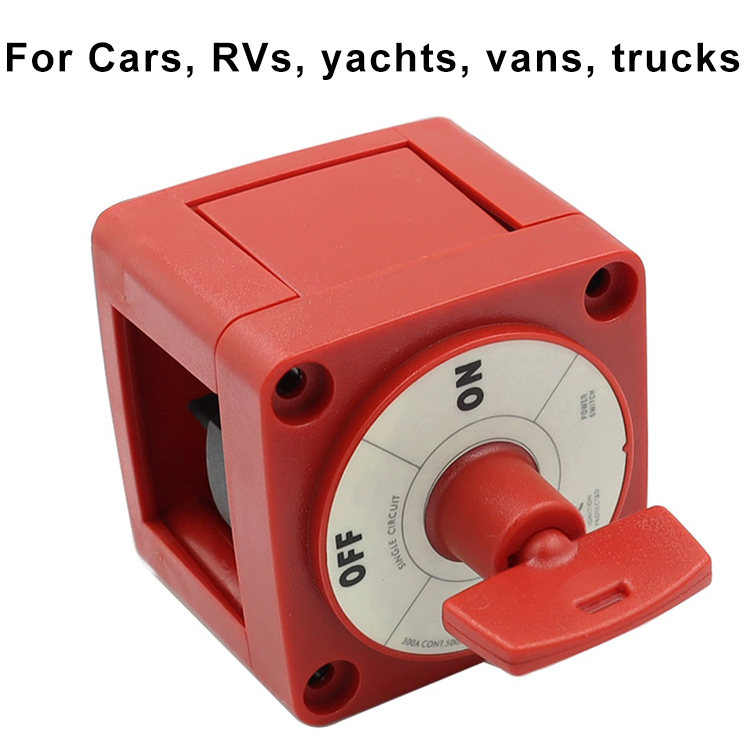

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.

Boat Sea Sytems 6004 M Series ON Off Locking Main Power Switch Battery Switch
