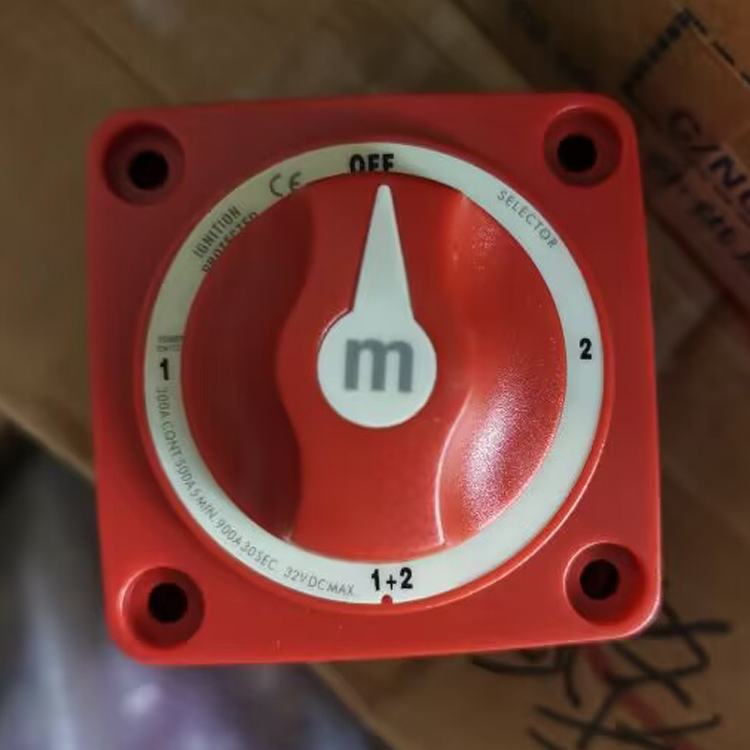

6007 Red Mini Selector Battery Isolator Switch with Removable Knob
Switches isolated battery banks to all loads or combines battery banks to all loads
•Make before break contact design allows switching between battery banks without power interruption
Specification
| Product Name | Boat Marine RV Battery Switch |
| Color | Red |
| Switch Type | Selector 4 Position |
| Switch Positions | 4 |
| Battery Combine | Yes |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Starting Rating 30 sec | 900A |
| Maximum Voltage | 32VDC |
| Stud Size | 3/8" |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Battery Inputs | 2 |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Weight | 0.77lb (0.35 kg) |
Features
•Make before break contact design allows switching between battery banks without power interruption
•Ignition protected—safe for installation aboard gasoline powered boats
•Case design allows surface front panel or rear panel mounting

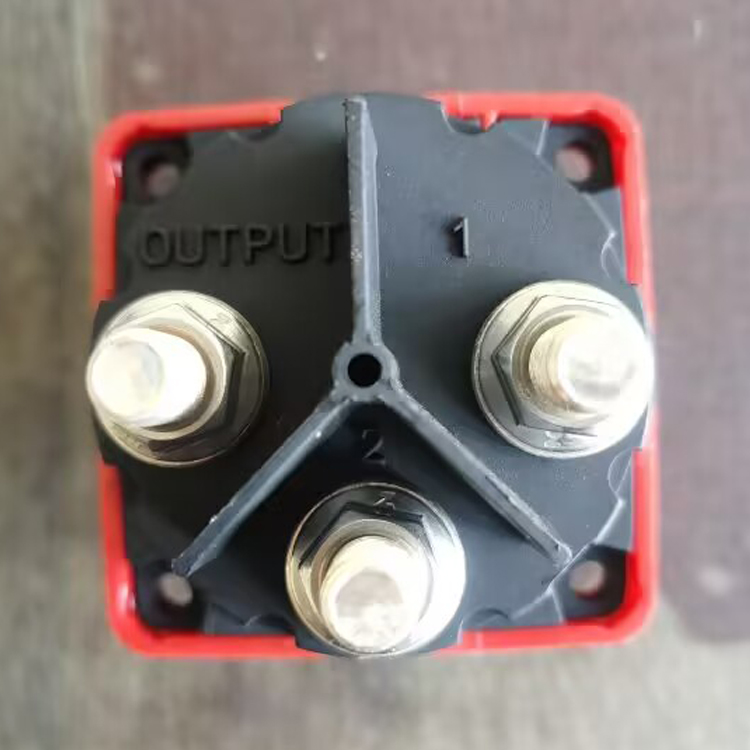

•Isolating cover with snap-on sections protects rear contacts
•3/8""-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8"" and M10 ring terminals
•7/8"" (22.22mm) stud length to accept multiple cable terminals
•Ideal for marine or RV applications
•All non-corrosive marine grade metals
•Molded in durable reinforced polycarbonate
•Tactile textures indicate knob position by feel only
•Removable key or knob remains positively retained
Function
Prevent leakage, protect the power supply, disconnect the battery safely.
Application
This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
