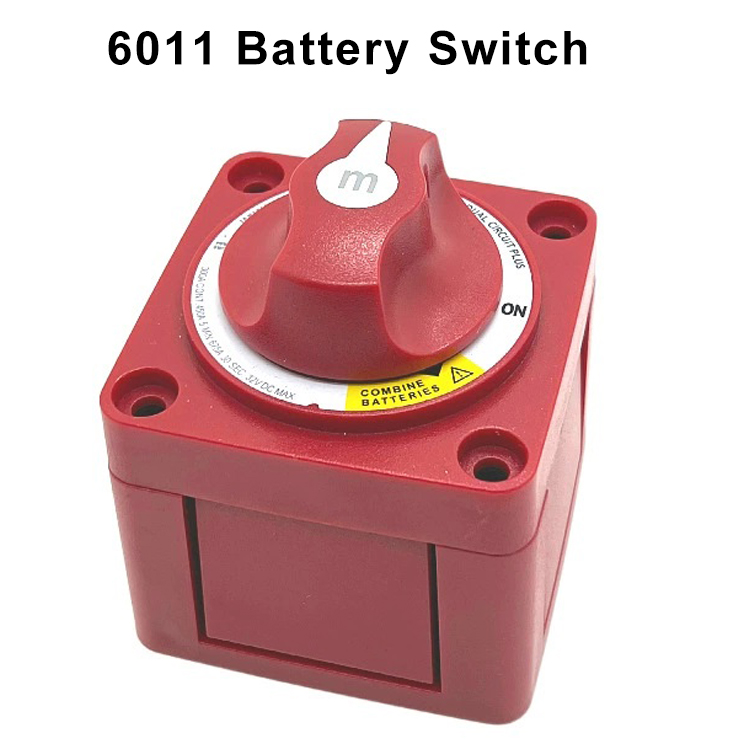

RV Yacht Marine 6011 M Series 300A Main Battery Power Switch
6011 m-Series (Mini) Battery Switch
Dual Circuit Plus
•Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery
•The "Combine Batteries" function offers the ability to combine the two battery banks in the event of a low Start battery
Specification
| Product Name | Boat Marine RV Battery Switch |
| Color | Red |
| Switch Type | Dual Circuit Plus |
| Switch Positions | 3 |
| Battery Combine | Yes |

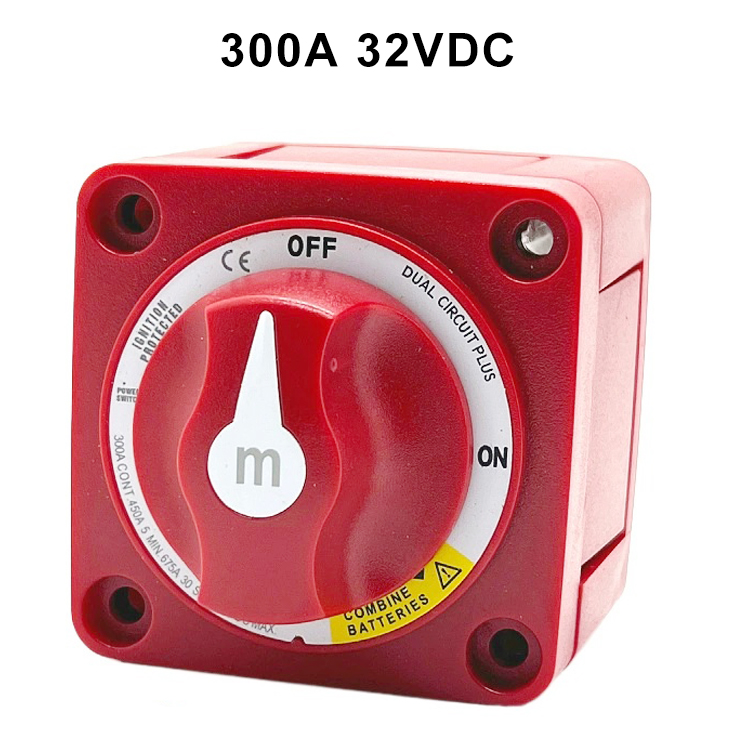

| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Starting Rating 30 sec | 675A per circuit |
| Maximum Voltage | 32VDC |
| Stud Size | 3/8" |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Battery Inputs | 2 |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Weight | 0.80lb (0.36 kg) |
Features

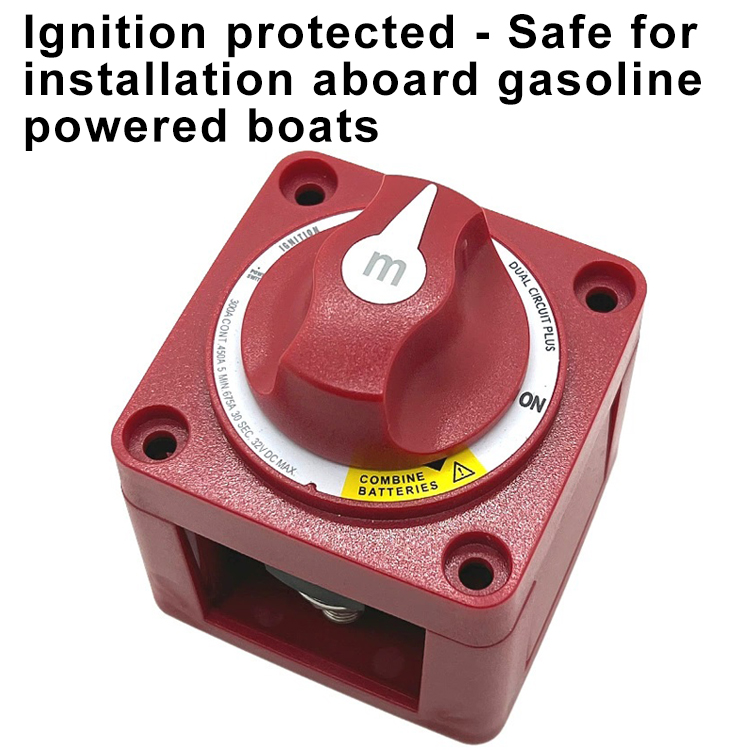

•Ignition protected - Safe for installation aboard gasoline powered boats
•Case design allows surface, front panel, or rear panel mounting
•Isolating cover with snap-on sections protects rear contacts

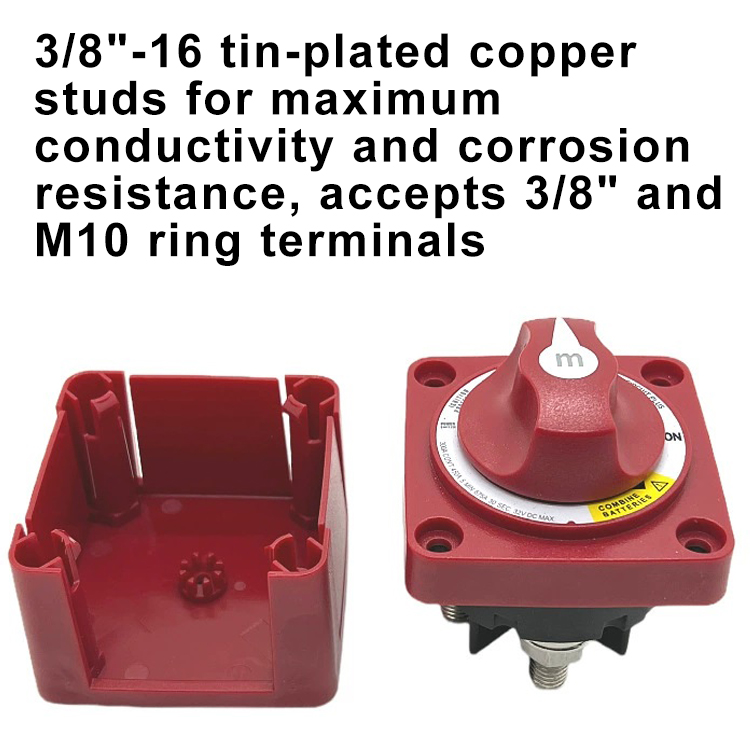

•3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

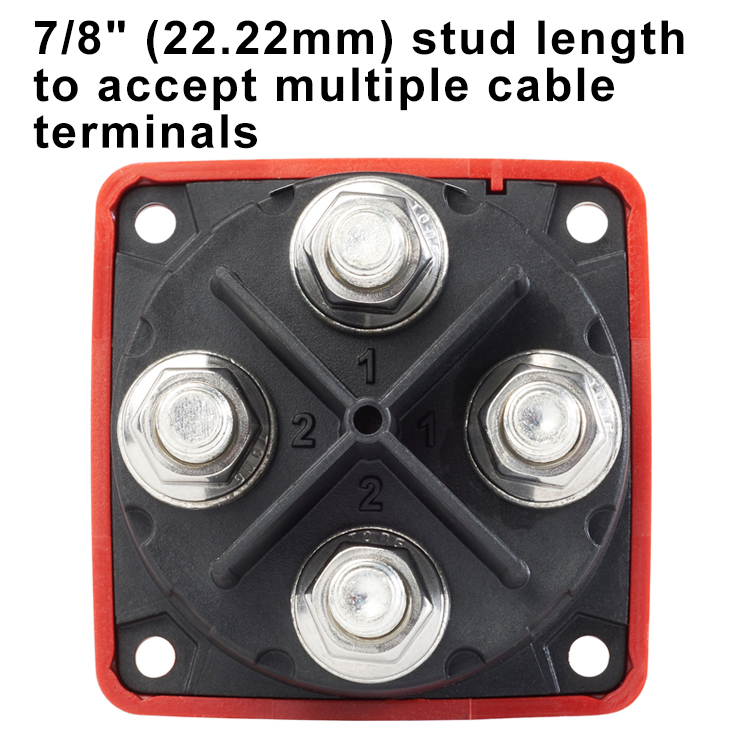

•7/8" (22.22mm) stud length to accept multiple cable terminals
•Ideal for marine or RV applications
•All non-corrosive marine grade metals
•Molded in durable reinforced polycarbonate
•Tactile textures indicate knob position by feel only
•Label with international ON/OFF legends
•Removable key or knob remains positively retained
•ICON label set included for circuit identification
Function
Prevent leakage, protect the power supply, disconnect the battery safely.
Description

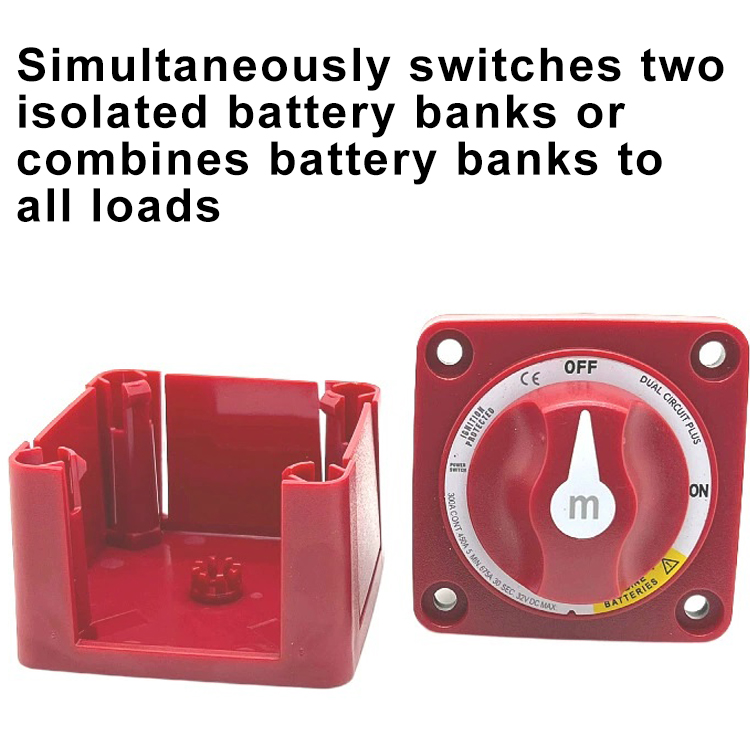

A compact battery switch that simplifies switching and offers multiple installation options. Simultaneously switches two isolated battery banks or combines battery banks to all loads. The Dual Circuit Plus switches isolate your Start and House battery circuits, preventing accidental discharge of the starting bank and protecting your electronics from engine starting sags and spikes. Ideal when combined with an Automatic Charging Relay, which will automate charging while the Dual Circuit Plus will simplify the switching. In an emergency, this switch allows you to combine two battery banks in the ON position. The combine feature allows you to cross-connect your battery banks to start the engine or make a radio call. The m-Series battery switches are compact and waterproof and can be installed in a variety of locations. A small footprint and 3 mounting options make installation easy. They are ignition protected and can be located in the engine rooms of gasoline powered boats. The one piece copper terminal studs are long and will accept multiple cables and the torque required to create a secure connection that minimizes resistance. Tactile textures on the face for knob position awareness by feel only. A removeable knob adds a level of security and provides a service lock-out when needed.
Application
This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
